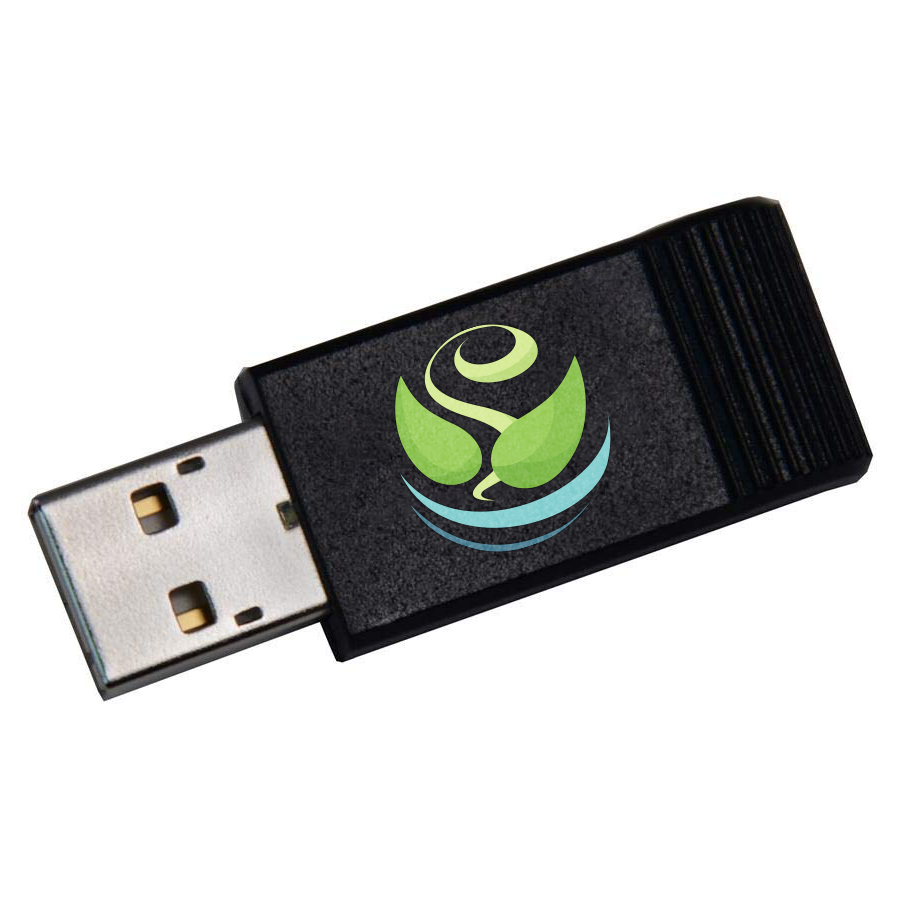

AGrowTronics Micro Gateway

Model: AG-G-MUSB

The small size of the AgrowTronics AgrowGateway AG-G-MUSB Micro USB Gateway betrays its capabilities. The Micro USB Dongle AG-G-MUSB Gateway is integrated with a fully-featured and powerful Wi-Fi Client and Bluetooth Low Energy (BLE) Gateway.

Use the AG-G-MUSB USB to enable remote monitoring and control of BLE sensors in the greenhouse from anywhere in the world.

Category:

Description

Small but mighty

The small size of the AgrowTronics AgrowGateway AG-G-MUSB Micro USB Gateway betrays its capabilities. The Micro USB Dongle AG-G-MUSB Gateway is integrated with a fully-featured and powerful Wi-Fi Client and Bluetooth Low Energy (BLE) Gateway.

Use the AG-G-MUSB USB to enable remote monitoring and control of BLE sensors in the greenhouse from anywhere in the world.

Keep your data in check, and on the record

AGrowTronics uses the AGrowCloud platform to automatically load sensor data and store it for historical review. Any sensors that identify readings that exceed preset thresholds will automatically generate notifications via SMS, E-mail or Voice calls.

Hassle free installation

The AG-G-MUSB Micro USB is easily provisioned using the AGrowTronics AgrowApp mobile application  (Available in the Apple Apps Store or on Google Play). Simply scan the QR code on the back of the AG-G-MUSB Micro Gateway or   package. Then, the AgrowApp will guide you through the process of connecting the AG-G-MUSB Micro Gateway to the Greenhouse Wi-Fi Network.

Once connected to the network, the AG-G-MUSB Micro USB automatically registers with  AgrowTronics’ AgrowCloud platform.

Adding new BLE sensors is just as easy, with a simple one-step process. Simply use the AGrowTronics AgrowApp to add a new BLE sensor. Scan or enter the product code and the AgrowApp will automatically scan for the BLE sensors and register it with your account.

Once the BLE sensors are registered, data immediately starts flowing to the AGrowCloud System.

The AG-G-MUSB Micro USB Gateway supports Dual Band 2.4GHz and 5GHz Wi-Fi frequency bands.

Secure greenhouse data

The AG-G-MUSB Gateway has an embedded encryption chip that ensures all communication is protected and cannot be intercepted. The encryption chip stores the AG-G-MUSB private key in an impenetrable vault. The private key never leaves the device, ensuring it cannot be compromised.

Greenhouse monitoring can be hard, why not make it easy? The AG-G-MUSB is the premier solution for seamless and remote full-scale greenhouse environmental monitoring, control, management, configuration and associated analytics. Feel at ease when you’re away from the greenhouse with a responsive monitoring solution. Review data remotely, no matter where in the world you are. No time to constantly check reports? No problem. The AG-G-MUSB Gateway lets you know if any BLE sensors show data outside of your predefined parameters. Choose to receive emails, text messages, and/or notifications whenever a sensor reading is outside of your network configuration criteria

Why use the AGrowTronics AG-G-MUSB Gateway?

  • Record data immediately
  • Dual-Band Wi-FI frequencies supported to address network congestion
  • Fast, easy setup and guided installation
  • Easily connect through the AGrowTronics AgrowApp for immediate and remote access
  • Get instant alerts for abnormal data readings
  • Store recorded data securely
  • No manual data recording, everything automatically goes to the AgrowTronics AGrowCloud
  • Review past data logs for reference and comparison

Join AgrowTronics and grow intelligently!

Device Specifications

Bluetooth Gateway Capabilities

  • Maximum BLE Clients: 16
  • Supports a single 2.4 GHz antenna shared between WLAN and Bluetooth
  • Bluetooth v4.0 with integrated Class 1 PA, plus 8dBM max TX Pwr.
  • Concurrent Bluetooth and WLAN operation
  • Bluetooth low power inquiry and page scan
  • Bluetooth Low Energy (BLE) support
  • Bluetooth Packet Loss Concealment (PLC)
  • The BBC supports all Bluetooth 4.0 features, with the following benefits:
  • Dual-mode classic Bluetooth and classic Low Energy (BT and BLE) operation.
    • Low Energy Physical Layer
    • Low Energy Link Layer
    • Enhancements to HCI for Low Energy
    • Low Energy Direct Test mode
    • AES encryption
ParameterConditionsMinTypicalMaxUnit
Frequency Range24022480MHz
RX SenistivityGFSK, 0.1%-93.5dBm
π/4-DQPSK,
0.01% BER,
2 Mbps
-95.5dBm
8-DPSK,
0.01% BER,
3 Mbps
-89.5dBm
Input IP3-16dBm
Maximum Input at Antenna-20dBm

Wi-Fi Capabilities

  • Security
    • Open Network
    • WPA
    • WPA2PSK
    • Full Enterprise 802.1X Security
      • EAP PEAP
      • EAP TLS
  • Fast Connect
  • Auto Reconnect
  • Automatic Selection of Best Access Point and Channel
FeatureDescription
WLAN StandardIEEE 802.11 b/g/n Wi-Fi Compliant
Frequency Range2.400GHz - 2.497 GHz ( 2.4 GHz ISM Band)
Supported Channels1,2,3,4,5,6,7,8,9,11,12,13,14 - Some are Country Dependant
Modulation 802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK
802.11b : CCK, DQPSK, DBPSK
Output Power802.11b /11Mbps : 17 dBm ± 1.5 dB
802.11g /54Mbps: 17 dBm ± 1.5 dB
802.11n /72Mbps: 16 dBm ± 1.5 dB
Receive Sensitivity
(11n,20MHz)
@10% PER
MCS=0 PER @ -86 dBm, typical
MCS=1 PER @ -85 dBm, typical
MCS=2 PER @ -85 dBm, typical
MCS=3 PER @ -84 dBm, typical
MCS=4 PER @ -80 dBm, typical
MCS=5 PER @ -78 dBm, typical
MCS=6 PER @ -72 dBm, typical
MCS=7 PER @ -69 dBm, typical
Receive Sensitivity
(11g) @10% PER
6Mbps PER @ -89 dBm, typical
9Mbps PER @ -88 dBm, typical
12Mbps PER @ -88 dBm, typica
18Mbps PER @ -87 dBm, typical
24Mbps PER @ -83 dBm, typical
36Mbps PER @ -80 dBm, typical
48Mbps PER @ -75 dBm, typical
54Mbps PER @ -72 dBm, typical
Data Rate
20MHz, 800ns GI
802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
Data Rate
20MHz, 400ns GI
802.11n : 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65,72.2Mbps
Maximum Input Level802.11b : -10 dBm
802.11g : -10 dBm
FeatureDescription
WLAN StandardIEEE 802.11 a/n Wi-Fi Compliant
Frequency Range4.900 GHz ~ 5.845 GHz (5 GHz Band)
Supported Channels36~48, 52~64, 100~144, 149 ~165 - Some are Country Dependant
Modulation 802.11a/n OFDM
Output Power802.11a 19 dBm ± 1.5 dB
802.11n 19 dBm ± 1.5 dB
Receive Sensitivity
(11a, 20 Mhz channel
spacing for all rates)
@10% PER
6 Mbps OFDM PER @ -90.5 dBm, typical
9 Mbps OFDM PER @ -90.5 dBm, typical
12 Mbps OFDM PER @ -87.5 dBm, typical
18 Mbps OFDM PER @ -85.5 dBm, typical
24 Mbps OFDM PER @ -82.5 dBm, typical
36 Mbps OFDM PER @ -80.5 dBm, typical
48 Mbps OFDM PER @ -76.5 dBm, typical
54 Mbps OFDM PER @ -73.5 dBm, typical
Receive Sensitivity
(11n, 20 Mhz channel
spacing for all rates)
@10% PER
MCS 0 PER @ -90.5 dBm, typical
MCS 1 PER @ -86.5 dBm, typical
MCS 1 PER @ -86.5 dBm, typical
MCS 3 PER @ -82.5 dBm, typical
MCS 4 PER @ -78.5 dBm, typical
MCS 5 PER @ -73.5 dBm, typical
MCS 6 PER @ -71.5 dBm, typical
MCS 7 PER @ -70.5 dBm, typical
Data Rate
20MHz, 800ns GI
802.11 a/n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
Data Rate
20MHz, 400ns GI
802.11 a/n : 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65,72.2Mbps
Maximum Receive Level
@5.24 GHz
@ 6, 9, 12 Mbps -29.5 dBm
@ 18, 24,36,48,54 Mbps -29.5 dBm
