Series 1 Gateway

Model: AG-G1-XXXX

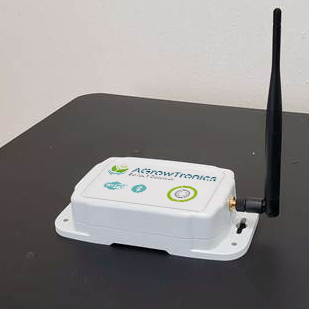

The AG-G1-XXXX Series 1 Gateway is a complete Gateway solution that aggregates any quantity of AgrowSense sensor data within a Greenhouse sensor network and provides the information collected to the AgrowTronics AgrowCloud platform for sensor control, management, monitoring and associated analytics. The AG-G1-XXXX  Series 1 Gateway is a fully-featured, powerful Wi-Fi Client and Bluetooth Low Energy (BLE) Gateway system with battery backup.

The AG-G1-XXXX Series 1 Gateway is powered using a smart USB C interface, allowing fast charging. User interaction with the The AG-G1-XXXX Series 1 is made simple with the integrated AGrowTronics SmartRing of RGB LEDs. This SmartRing also serves to provide visual alerts if warnings are detected from any of the AgrowSense sensors.

Category:

Description

AgrowGateway Series 1 Gateway Product Family:

Model:

  • AG-G1-THU : Sensors {Temp/Humidity/Lux/} powered by USB
  • AG-G1-THAU : Temp/Humidity/Lux//Air Quality powered by USB
  • AG-G1-THB : Temp/Humidity/Lux/ powered by Battery
  • AG-G1-THAB : Temp/Humidity/Lux//Air Quality powered by Battery
  • AG-G1-RB : Rechargeable Battery (No on-board sensors)
  • AG-G1-THRB : Temp/Humidity and Rechargeable Battery
  • AG-G-MUSB : Micro USB

The AG-G1-XXXX Series 1 Gateway is a complete Gateway solution that aggregates any quantity of AgrowSense sensor data within a Greenhouse sensor network and provides the information collected to the AgrowTronics AgrowCloud platform for sensor control, management, monitoring and associated analytics. The AG-G1-XXXX  Series 1 Gateway is a fully-featured, powerful Wi-Fi Client and Bluetooth Low Energy (BLE) Gateway system with battery backup.

The AG-G1-XXXX Series 1 Gateway is powered using a smart USB C interface, allowing fast charging. User interaction with the The AG-G1-XXXX Series 1 is made simple with the integrated AGrowTronics SmartRing of RGB LEDs. This SmartRing also serves to provide visual alerts if warnings are detected from any of the AgrowSense sensors.

With the high powered external Wi-Fi antenna, the AG-G1-XXXX Series 1 Gateway can provide connectivity to BLE devices up to 300 feet away.

Work anywhere, monitor anywhere

Use the AG-G1-XXXX Series 1 Gateway to provide monitoring and control of Wired and BLE AgrowSense sensors in the greenhouse, from anywhere in the world. AGrowTronics uses the AgrowCloud platform to automatically load sensor data and store it for historical review. Any AgrowSense sensors that find data exceeding preset thresholds automatically generate notifications via SMS, E-mail or Voice calls.

Simple, fast start up

The AG-G1-XXXX Series 1 Gateway is effortlessly provisioned using the AGrowTronics AgrowApp mobile application (Available in the Apple Apps Store or on Google Play). Simply scan the QR code on the back of the AG-G1-XXXX or AG-G1-XXXX product box. Then, the AgrowApp guides you through the process of connecting the AG-G1-XXXX Series 1 Gateway to the Greenhouse Wi-Fi Network. Once connected to the network, the AG-G1-XXXX  automatically registers with the AGrowTronics AgrowCloud platform.

Adding AgrowSense BLE sensors is a fast, one-step process as well. Simply use the AgrowApp to add a new sensor. Scan or enter the product code and the AG-G1-XXXX Series 1 Gateway automatically scans for the device and registers it with your account.

Wired Devices are automatically detected and will self-provision. They are automatically  added to the user’s account, and then show up in the dashboard for the AG-G1-XXXX Series 1. Data immediately starts flowing to the AGrowTronics AgrowCloud platform once an AgrowSense sensor is connected.

No Wi-FI? No power? No problem.

The integrated battery backup allows the AG-G1-XXXX Series 1 to continue monitoring and controlling the greenhouse when power is interrupted. It also immediately sends a notification to the AGrowTronics AgrowCloud platform when a power failure is detected. Note: Separate backup power supply for networking equipment is required.

While operating offline, the unit can store up to 1 Million data samples. This offline backup feature allows it to monitor for extended periods without internet connectivity.

Secure your data

The AG-G1-XXXX Series 1 Gateway supports Dual-Band Wi-Fi frequencies in the 2.4GHz and 5GHz bands with standard and full Enterprise 802.1X Security.

The AG-G1-XXXX Series 1 Gateway also has an embedded encryption chip that ensures all communication is protected and cannot be intercepted. The encryption chip stores the AG-G1-XXXX Series 1 Gateway private key in an impenetrable vault. The private key never leaves the AG-G1-XXXX Series 1 Gateway and cannot be compromised.

High fidelity greenhouse monitoring like never before

Forget what you thought you knew about greenhouse monitoring. With the introduction of the AGrowTronics AG-G1-XXXX Series 1 Gateway, wireless BLE monitoring is the future. Easily control granular details of sensitive micro-climates, get alerts when readings show even the smallest issues, and enjoy peace of mind knowing that your greenhouse is under control.

Why choose the AGrowTronics Series 1 Gateway?

  • Real-time alerts for abnormal sensor readings
  • Fast, easy wireless BLE device connection
  • Maintain control when power fails
  • Constant data recording even without Wi-Fi
  • Secure, fully encrypted data
  • Integrated SmartRing RGB LEDs
  • Get battery backup and fast charging
  • Extreme connectivity- up to 300 feet away
  • Automatically load sensor data
  • Get SMS, Email, and Voice alerts
  • Monitor remotely, from anywhere in the world
  • Set parameters for greenhouse microclimates

Join AgrowTronics and grow intelligently.

Device Specifications

Bluetooth Gateway Capabilities

  • Maximum BLE Clients: 128
  • Supports a single 2.4 GHz antenna shared between WLAN and Bluetooth
  • Bluetooth v4.0 with integrated Class 1 PA, plus 8dBM max TX Pwr.
  • Concurrent Bluetooth and WLAN operation
  • Bluetooth low power inquiry and page scan
  • Bluetooth Low Energy (BLE) support
  • Bluetooth Packet Loss Concealment (PLC)
  • The BBC supports all Bluetooth 4.0 features, with the following benefits:
  • Dual-mode classic Bluetooth and classic Low Energy (BT and BLE) operation.
    • Low Energy Physical Layer
    • Low Energy Link Layer
    • Enhancements to HCI for Low Energy
    • Low Energy Direct Test mode
    • AES encryption
ParameterConditionsMinTypicalMaxUnit
Frequency Range24022480MHz
RX SenistivityGFSK, 0.1%-93.5dBm
π/4-DQPSK,
0.01% BER,
2 Mbps
-95.5dBm
8-DPSK,
0.01% BER,
3 Mbps
-89.5dBm
Input IP3-16dBm
Maximum Input at Antenna-20dBm

Wi-Fi Capabilities

  • Security
    • Open Network
    • WPA
    • WPA2PSK
    • Full Enterprise 802.1X Security
      • EAP PEAP
      • EAP TLS
  • Fast Connect
  • Auto Reconnect
  • Automatic Selection of Best Access Point and Channel
FeatureDescription
WLAN StandardIEEE 802.11 b/g/n Wi-Fi Compliant
Frequency Range2.400GHz - 2.497 GHz ( 2.4 GHz ISM Band)
Supported Channels1,2,3,4,5,6,7,8,9,11,12,13,14 - Some are Country Dependant
Modulation 802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK
802.11b : CCK, DQPSK, DBPSK
Output Power802.11b /11Mbps : 17 dBm ± 1.5 dB
802.11g /54Mbps: 17 dBm ± 1.5 dB
802.11n /72Mbps: 16 dBm ± 1.5 dB
Receive Sensitivity
(11n,20MHz)
@10% PER
MCS=0 PER @ -86 dBm, typical
MCS=1 PER @ -85 dBm, typical
MCS=2 PER @ -85 dBm, typical
MCS=3 PER @ -84 dBm, typical
MCS=4 PER @ -80 dBm, typical
MCS=5 PER @ -78 dBm, typical
MCS=6 PER @ -72 dBm, typical
MCS=7 PER @ -69 dBm, typical
Receive Sensitivity
(11g) @10% PER
6Mbps PER @ -89 dBm, typical
9Mbps PER @ -88 dBm, typical
12Mbps PER @ -88 dBm, typica
18Mbps PER @ -87 dBm, typical
24Mbps PER @ -83 dBm, typical
36Mbps PER @ -80 dBm, typical
48Mbps PER @ -75 dBm, typical
54Mbps PER @ -72 dBm, typical
Data Rate
20MHz, 800ns GI
802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
Data Rate
20MHz, 400ns GI
802.11n : 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65,72.2Mbps
Maximum Input Level802.11b : -10 dBm
802.11g : -10 dBm
FeatureDescription
WLAN StandardIEEE 802.11 a/n Wi-Fi Compliant
Frequency Range4.900 GHz ~ 5.845 GHz (5 GHz Band)
Supported Channels36~48, 52~64, 100~144, 149 ~165 - Some are Country Dependant
Modulation 802.11a/n OFDM
Output Power802.11a 19 dBm ± 1.5 dB
802.11n 19 dBm ± 1.5 dB
Receive Sensitivity
(11a, 20 Mhz channel
spacing for all rates)
@10% PER
6 Mbps OFDM PER @ -90.5 dBm, typical
9 Mbps OFDM PER @ -90.5 dBm, typical
12 Mbps OFDM PER @ -87.5 dBm, typical
18 Mbps OFDM PER @ -85.5 dBm, typical
24 Mbps OFDM PER @ -82.5 dBm, typical
36 Mbps OFDM PER @ -80.5 dBm, typical
48 Mbps OFDM PER @ -76.5 dBm, typical
54 Mbps OFDM PER @ -73.5 dBm, typical
Receive Sensitivity
(11n, 20 Mhz channel
spacing for all rates)
@10% PER
MCS 0 PER @ -90.5 dBm, typical
MCS 1 PER @ -86.5 dBm, typical
MCS 1 PER @ -86.5 dBm, typical
MCS 3 PER @ -82.5 dBm, typical
MCS 4 PER @ -78.5 dBm, typical
MCS 5 PER @ -73.5 dBm, typical
MCS 6 PER @ -71.5 dBm, typical
MCS 7 PER @ -70.5 dBm, typical
Data Rate
20MHz, 800ns GI
802.11 a/n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
Data Rate
20MHz, 400ns GI
802.11 a/n : 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65,72.2Mbps
Maximum Receive Level
@5.24 GHz
@ 6, 9, 12 Mbps -29.5 dBm
@ 18, 24,36,48,54 Mbps -29.5 dBm
