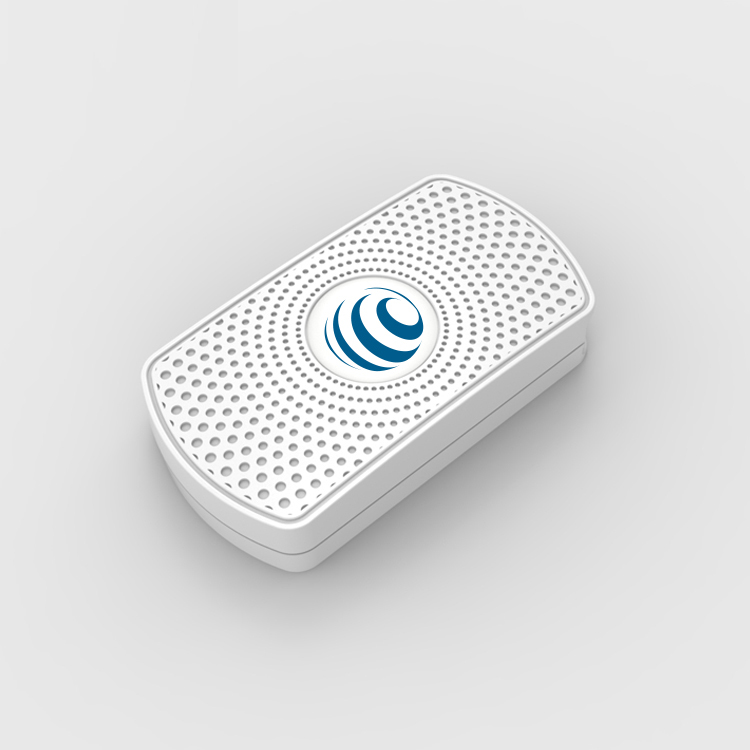

BLE Temperature/Humidity Sensor

Model: AG-B-TH-1

The AGrowTronics BLE Temperature and Humidity sensors is a BLE device that incorporates into the AGrowTronics Greenhouse system. This sensor can be used in conjunction with any of the AGrowTronics Wi-Fi BLE gateway products. Using the AGrowTronics Mobile Application the device is easily added to the Greenhouse Sensor Network. Simply scan the QR code on the device or product packaging and the AGrowTronics Mobile application will automatically add this to the system.

Category:

Description

The AGrowTronics BLE Temperature and Humidity sensors is a BLE device that incorporates into the AGrowTronics Greenhouse system. This sensor can be used in conjunction with any of the AGrowTronics Wi-Fi BLE gateway products. Using the AGrowTronics Mobile Application the device is easily added to the Greenhouse Sensor Network. Simply scan the QR code on the device or product packaging and the AGrowTronics Mobile application will automatically add this to the system.

The device feature user selectable polling and logging rates. Additional facilities in the AGrowTronics Clould system allow the user to set critical notification levels for Temperature, Humidity, and Battery Level.

The AGrowTronics system reports Temperature in a user selectable format of Celsius or Fahrenheit.

Operating Temperature Range: -40°C~+125°C ± 0.3°C / -40°F~+257°F ± 0.5°F

Operating Humidity Range: 0~100%RH ±3%RH

The device can be used to monitor:

  • Greenhouse Temperature & Humidity
  • Reptile Habitats & Enclosures

Features

  • Bluetooth Low Energy
  • 2.4 GHz General ISM band
  • Long Distance Communication
  • Built in High Sensitivity Temperature and Humidity sensor
  • 3V user replaceable built in battery
  • Expected 1.5 Year Battery life with normal operation
  • Can store up to 12,000 data points internally

Temperature & Humidity Sensor Elements

DescriptionSpecification
Frequency Range2.400 - 2.4835GHz
Protocol StandardBluetooth 4.0
Modulation FormatGFSK
Minimum Send Interval500mS - User Adjustable
Integrated Battery600mAh /3V
Output power0dBm,adjustable
Communication rate1Mbps
Range50 Meters/160ft
Receiver Sensitivity1Mbps@-85dbm
Battery Life1.5 Years - User replaceable
Weight25g/1oz
Dimensions67mm * 51mm * 15mm / 2.6" * 2.0" * 0.6"
Temperature Range-40°C~+125°C ± 0.3°C / -40°F~+257°F ± 0.5°F
Humidity Range0~100%RH ± 3% RH
Data Logging capability12,000 entries

Note: All Specification subject to change, please consult for latest specifications or additional details.
